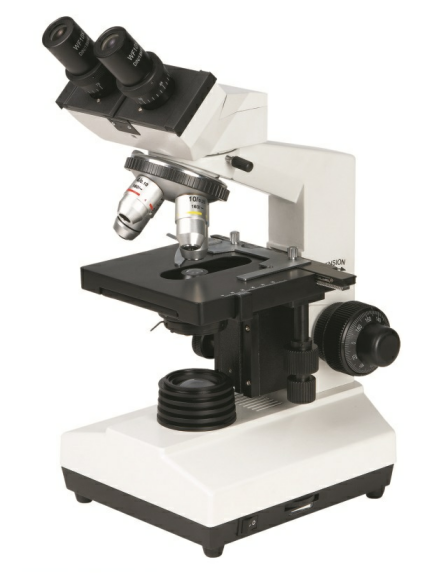

XSZ-107

XSZ-N107T

Viewing Head

Sliding Binocular Head

●

●

Sliding Trinocular Head

○

○

Seidentopf Binocular Head

○

○

Anti-mould

○

●

Eyepiece

WF10X

●

●

WF16X

○

○

Nosepiece

Quadruple Nosepiece

●

●

Quintuple Nosepiece

○

○

Objective

Achromatic Objective 4X,10X,40X(S),100X(S)

●

●

Stage

Double Layers Mechanical Stage 140X135mm/ 75X50mm

●

●

Condenser

Abbe NA1.25 with Iris Diaphragm & Filter

●

●

Focusing System

Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Moving Range 30mm

●

●

Armrest

Black Armrest

○

●

Rubber Cover

Rubber Cover for Focus Adjustment Knob

○

●

Illumination

S-LED Illumination, Brightness Adjustable

●

●

Halogen Lamp 220V/ 6V20W  or  110V/20W

○

○
