Standard Specification

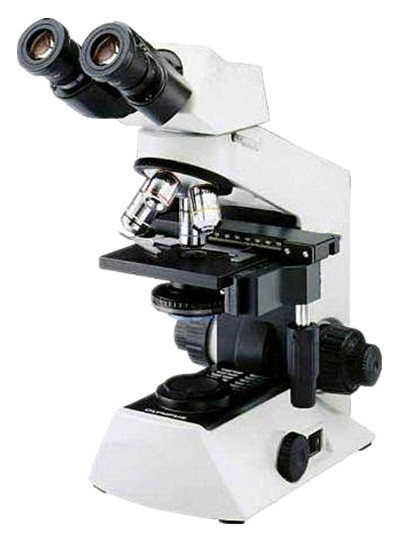

XSZ-169

Viewing Head

finity Optical System, Siedentopf Binocular head,

inclined at 30°, Interpupillary Distance 48-75mm

●

Infinity Optical System, Siedentopf Binocular head,

inclined at 30°, Interpupillary Distance 48-75mm

○

Eyepiece

Wide Field W10X/18 eyepiece

●

WF10/20 Eyepiece

WF20X 16x Eyepiece

○

Nosepiece

Outward Quadruple Nosepiece

●

Objectives

Achromatic Objective 4X 10X 40X(S), 100X(S.oil)

●

Plan Achromatic Objective 4X 10X 40X(S), 100X(S.oil)

○

Infinite Plan Achromatic Objective 4X 10X 40X(S), 100X(S.oil)

○

Stage

Double lay Mechanical Stage with Slides Clips140x140mm,

Moving range:75X50mm

●

Condenser

Abbe Condenser N.A.=1.25 With Iris Diaphragm and Filters

●

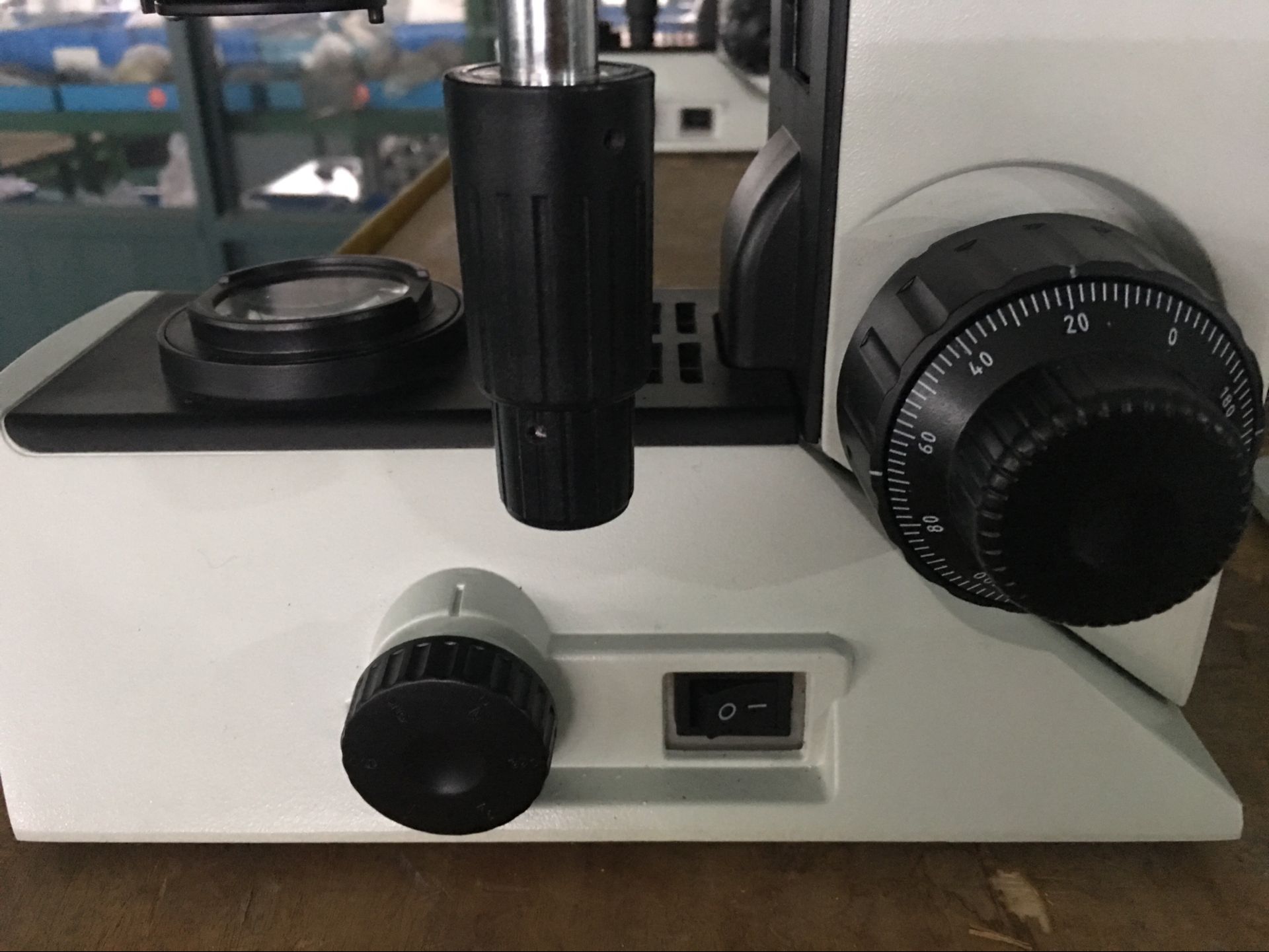

Focusing System

Coaxial Coarse&Fine Adjustment, Fine Division 0.002mm

●

Collector

High Brightness Collector

●

Illumination

AC220V/110V, Super LED lamp, Brightness Adjustable

●

Filters

Green, Blue Filters

●

Optional Accessories

1X CCD adapter

○

High resolution COMS Digital Camera 1.3MP, 2.0MP, 3.0MP,

5.0MP, 10.0MP with software

○
